CRONOTHLON
REPARTO CORSE

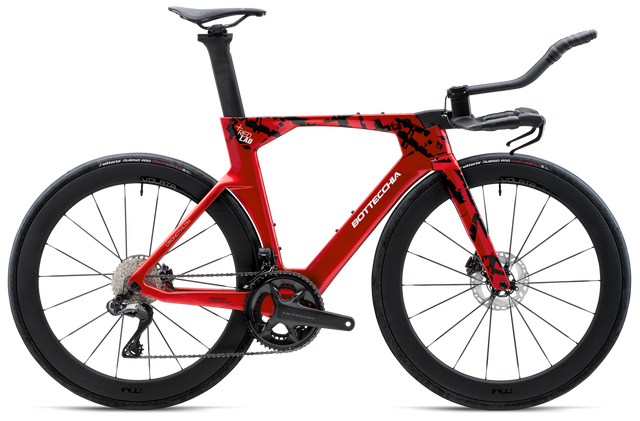

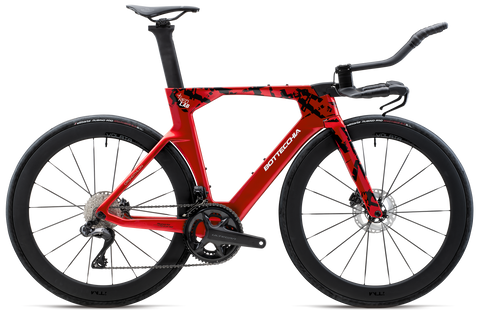

CRONOTHLON
FRAME
UD monocoque carbon, disk brakes thru axle, with monocoque integrated handlebar and stem and Aero seatpost.
BB
Pressfit 86mm
HEADTUBE
Integrated 1” 1/8 up and 1” 1/2 down
FORK
UD monocoque carbon for disk brake. Weight 430g.
WEIGHT
Size M raw 1420g
Setup
77RD CRONOTHLON Shimano Ultegra Di2 24s DISK
Sizes
49 - 51 - 53 - 55 - 57
SETUPS
77RD CRONOTHLON Shimano Ultegra Di2 24s DISK
Gear |
Shimano Ultegra Di2 24s TT DISK |
Rear Derailleur |
Shimano Ultegra Di2 24s |
Shifter |
Shimano Ultegra Di2 24s TT |
Chainwheel |
Shimano Ultegra 52/36 |
Wheels |
Fulcrum Wind 550 DB |
Cassette | Shimano Ultegra 11/34 12s |
Brakes |
Shimano Ultegra disk 140/160 |
Tires | Vittoria Zaffiro fold 700x25 |

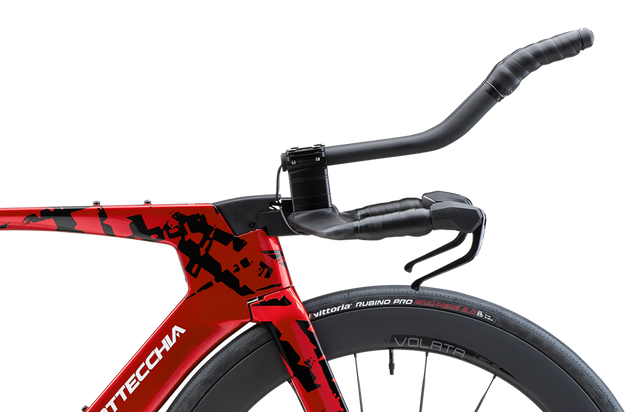

Handlebar |
Special Integrated CRONOTHLON |
Stem |
Special Integrated CRONOTHLON |
Seatpost |
CRONOTHLON Aero triat/chrono |
Saddle | SAN MARCO Short fit wide open |
Pedals | NO |
SIZE GUIDE
GO TO THE GUIDEWhat is your size?
Consult our SIZE GUIDE to get an indication of the frame size that best suits you. Remember that a biomechanical evaluation with your local authorized dealer is always recommended.
AERODYNAMIC FRAME TECHNOLOGY
The use of AFT (Aerodynamic Frame Technology) has made it possible to exploit aerodynamic and biomechanical design programs to push technical improvement to the maximum, leading to ever greater integration of the frame and components.AERO DESIGN

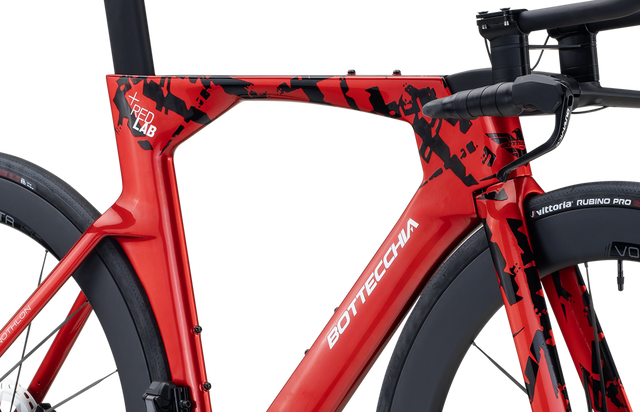

The clean and essential design with total integration of the cables follows the aerodynamic shape, reducing resistance to air movement to a minimum.REPARTO CORSE TECHNOLOGIES
Cronothlon combines the top of the range for time trial races and triathlons thanks to a particular solution for seat post adjustment, designed to obtain the maximum in both disciplines. A full carbon monocoque frame made with high modulus carbon fibers capable of meeting the highest demands with the most advanced technology and features, which make this product one of the best performing in its category. The use of AFT technology has made it possible to exploit aerodynamic and biomechanical design programs to push technical improvement to the maximum with components that are standardized in a single extraordinary structure. Furthermore, the smaller front surface given by the reduced tube sections ensures optimal performance at high speeds. The DMMT (Double Mold Monocoque Technology) construction technique guarantees an impeccable monocoque frame, eliminating all possible imperfections thanks to the internal support that keeps the carbon layup process stable.
IDEAL FOR
Designed for the world of competitions, CRONOTHLON is ideal for timed disciplines, where every second is precious. Perfect for triathlons and time trials.
PERFECT FOR YOU IF
If you are looking for a reliable and high-performance vehicle for triathlons or time trial races.
