AQUILA ROSSA EVO
REAPRTO CORSE
Made with the pros, for you.
New frame for AQUILA ROSSA EVO, the hard tail for competitions, designed for the mountain bike athletes. Official bike of the Bottecchia Factory Team, it allows you to face the most treacherous climbs with efficiency, and to conquer the fast descents in total safety. The super light frame is made of high-modulus carbon UD monocoque, extremely responsive and durable, it offers safety and great maneuverability to master even the most challenging tracks. The HPG (High Performace Geometry) is designed for trails with a perfect seat stay angle for the climb, and a head tube inclination designed to increase stability and control even on more technical descents. The review of the rear stay gives to the new AQUILA ROSSA EVO greater reactivity in raising and efficiency on the climb. The suspension fork with 100mm of travel absorbs bumps from the roughness of the terrain, while the 2,25 mm tires increase traction on rough paths. New predisposition for Sram UDH dropout, compatible with all transmission systems, which ensures greater protection of the gearbox and the frame in case of impact and allows a more precise adjustment of the rear derailleur.
AQUILA ROSSA EVO
FRAME
Monocoque carbon double mold tech, HM 29 Superlight with 12mm thru axle BOOST 148mm, suitable for Di2, Head tube internal cable routing. Derailleur hanger UDH, HPG geometry.
BB
Pressfit 92x41
HEADTUBE
Integrated 1” 1/2 up 1” 1/2 down
Integrated cable routing
SURCHARGE
C8 Matt black marmor glossy
WEIGHT
930g size M
Setups
79F AQUILAROSSA EVO Shimano XTR 12s
79Q AQUILAROSSA EVO Shimano XT 12s
79J AQUILAROSSA EVO Shimano Deore 12s
79X AQUILAROSSA EVO Sram GX 12s
79V AQUILAROSSA EVO Sram SX 12s
Sizes
40 - 43 - 47 - 52
SETUPS

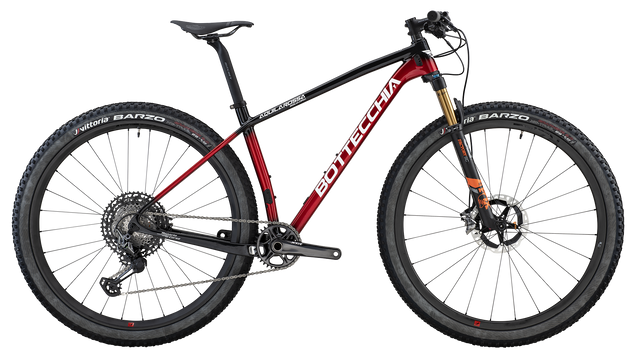

79F RED EAGLE EVO Shimano XTR 12s
Fork |
RS Sid Select 29 RL 100 PL Boost |
Rear Shox |
- |
Gear |
Shimano XTR 12s |
Rear Derailleur |
Shimano XTR 12s |
Shifter |
Shimano XTR 12s |
Chainwheel |
Shimano XTR 34t |
Wheels |
Ursus Diablo Carbon 30 TL |
Cassette |
Shimano XTR 10/51 12s |
Brakes |
Shimano XTR 9100 160/180 |
Tires |
Vittoria Mezcal XC 29x2.25 FOLD TL |
Handlebar |
ONE Carbon fully integrated |
Stem |
ONE Carbon fully integrated |
Seatpost |
Ritchey WCS 31.6x400 |
Saddle |
SAN MARCO short fit wide open |

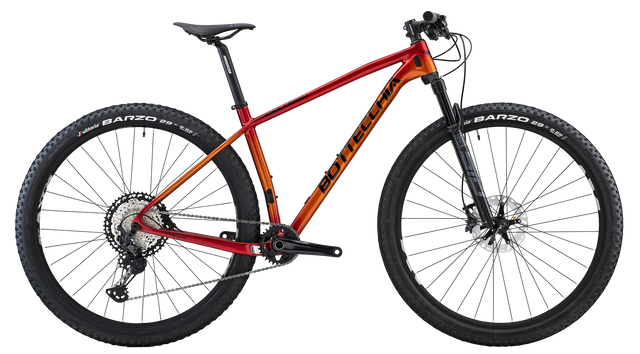

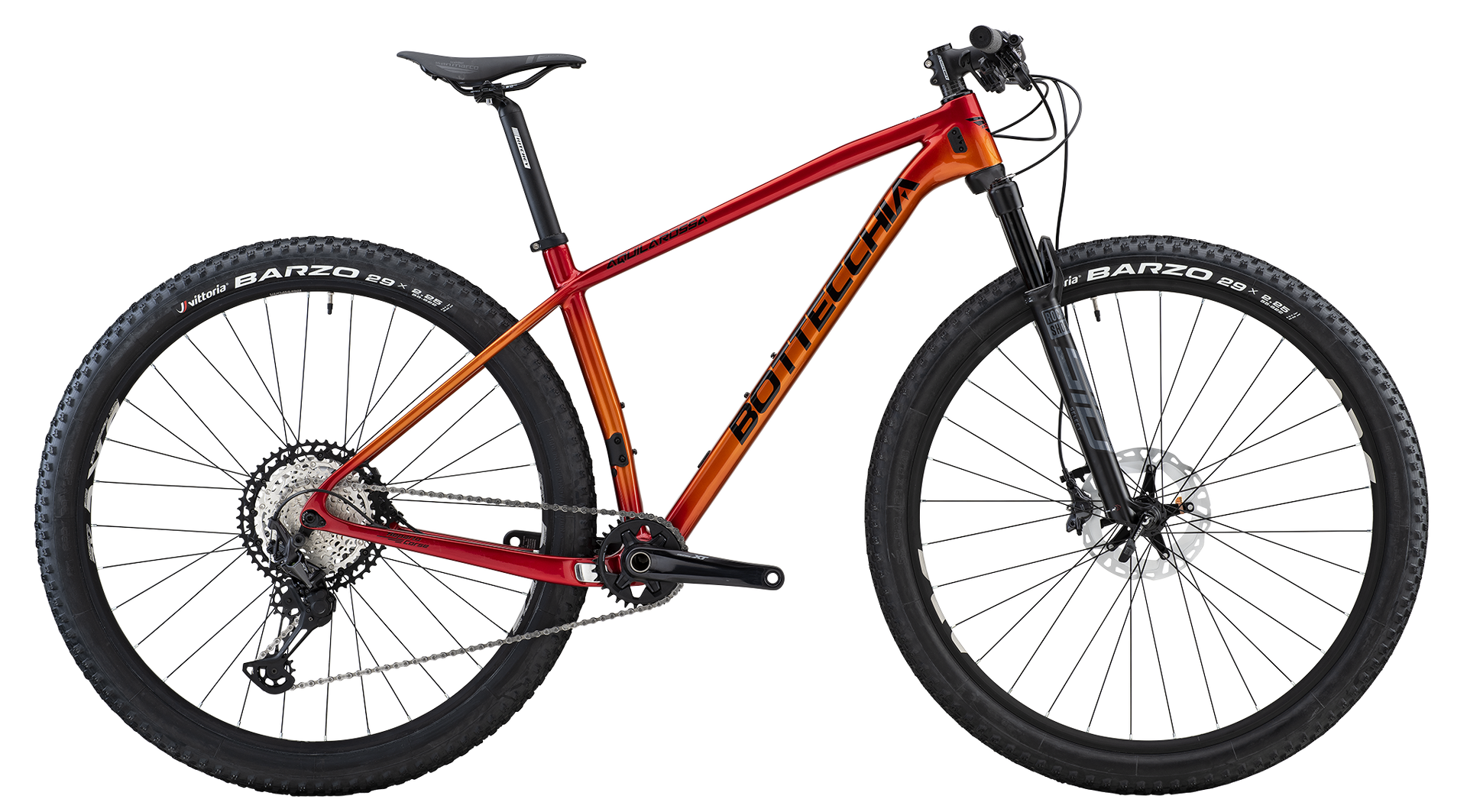

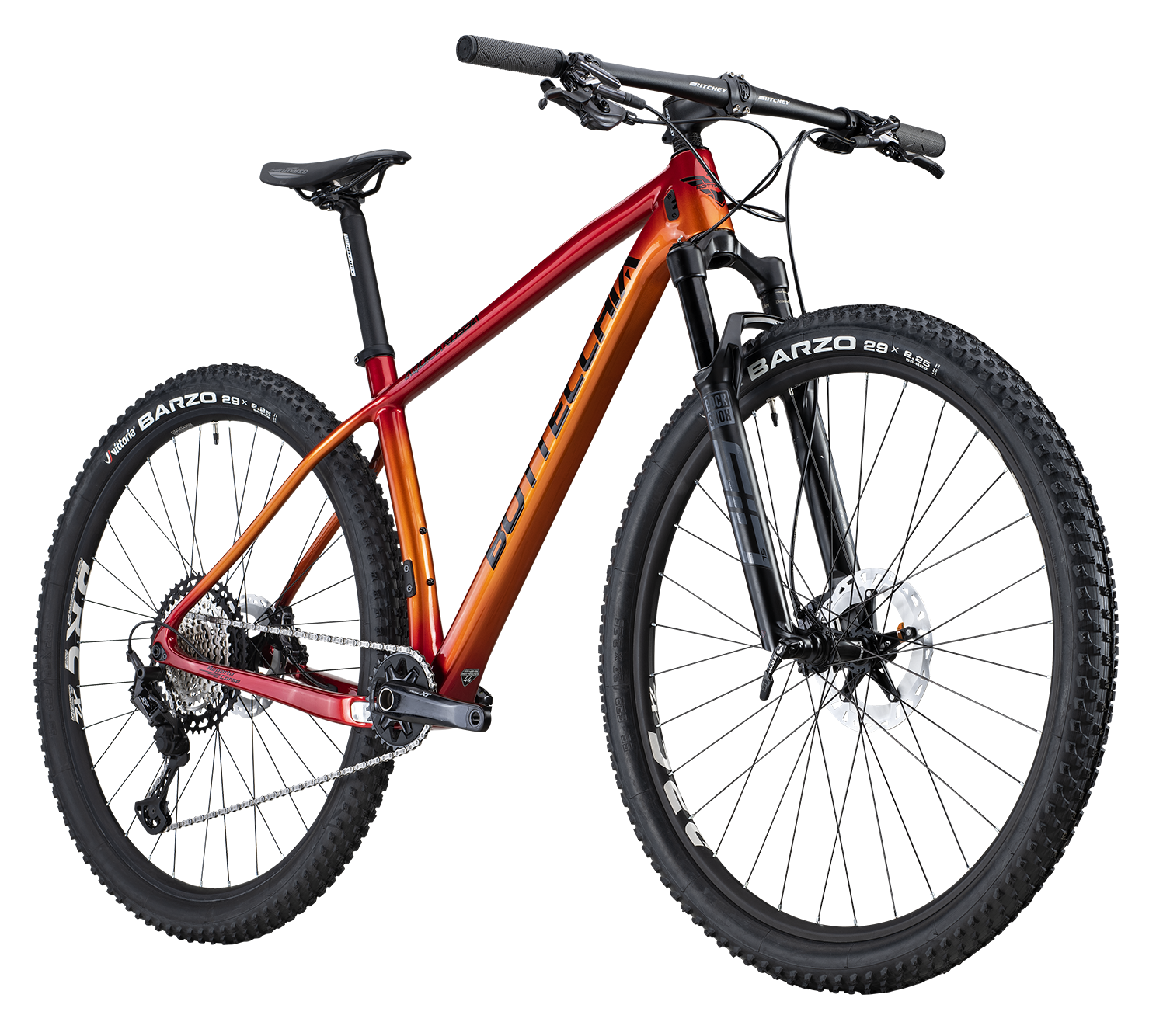

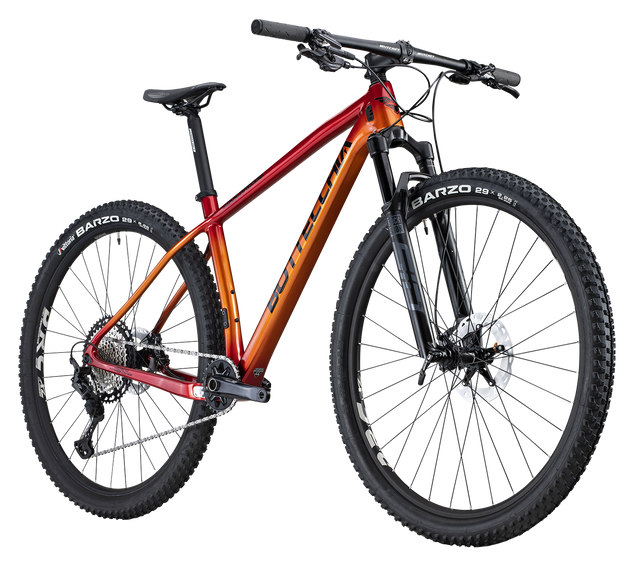

79Q RED EAGLE EVO Shimano XT 12s
Fork |
RS Sid Select 29 RL 100 PL Boost |
Rear Shox |
- |
Gear |
Shimano XT 12s |
Rear Derailleur |
Shimano XT 12s |
Shifter |
Shimano XT 12s |
Chainwheel |
Shimano XT 32t |
Wheels |
DRC Shimano MT 410 BOOST |
Cassette |
Shimano XT 10/51 12s |
Brakes |
Shimano XT 8100 160/180 |
Tires |
Vittoria Barzo 29x2.25 |
Handlebar |
ONE Carbon fully integrated |
Stem |
ONE Carbon fully integrated |
Seatpost |
Ritchey WCS 31.6x400 |
Saddle |
SAN MARCO short fit wide open |
79J RED EAGLE Shimano Deore 12s
Fork |
RS Reba 29 RL Boost 100mm |
Rear Shox |
- |
Gear |
Shimano Deore 12s |
Rear Derailleur |
Shimano Deore 12s |
Shifter |
Shimano Deore 12s |
Chainwheel |
Shimano FCMT 510 32t |
Wheels |
Raxe 29 TL30 MT 410 BOOST |
Cassette |
Shimano Deore 10/51 12s |
Brakes |
Shimano BR-MT500 160/180 |
Tires |
Vittoria Barzo 29x2.25 |
Handlebar |
ONE Carbon fully integrated |
Stem |
ONE Carbon fully integrated |
Seatpost |
Raxe Alu light 31.6x400 |
Saddle |
SAN MARCO short fit wide open |

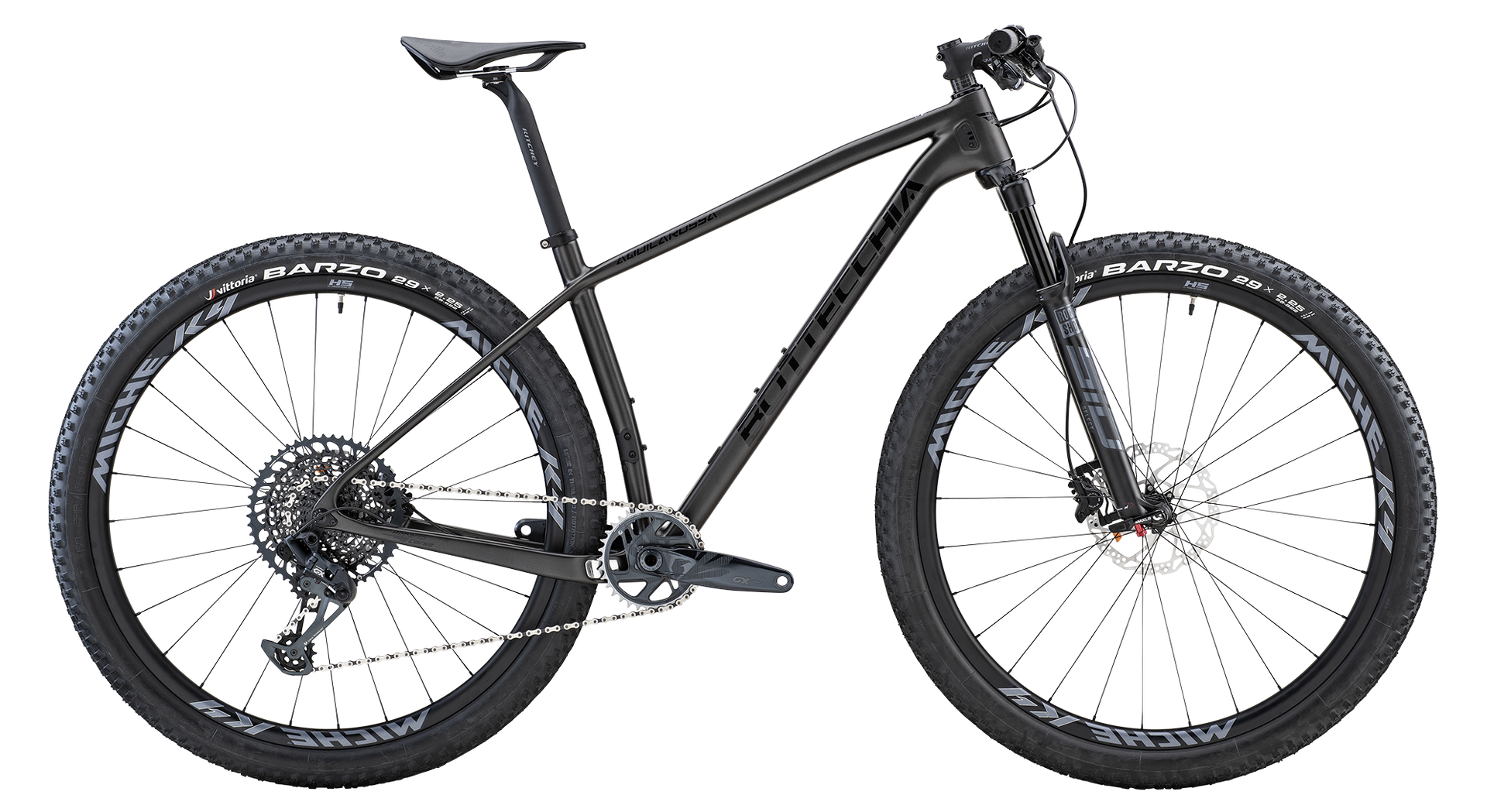

79X RED EAGLE EVO Sram GX 12s
Fork |
RS Reba 29 RL Boost 100mm |
Rear Shox |
- |
Gear |
Sram GX 12s |
Rear Derailleur |
Sram GX 12s |
Shifter |
Sram GX 12s |
Chainwheel |
Sram GX 32t |
Wheels |
Ursus Spark 25 xdr |
Cassette |
Sram GX 10/50 12s |
Brakes |
Shimano BR-MT500 160/180 |
Tires |
Vittoria Barzo 29x2.25 |
Handlebar |
ONE Carbon fully integrated |
Stem |
ONE Carbon fully integrated |
Seatpost |
Ritchey WCS 31.6x400 |
Saddle |
SAN MARCO short fit Carbon wide open |
79V RED EAGLE EVO Sram SX 12s
Fork |
RS Reba 29 RL Boost 100mm |
Rear Shox |
- |
Gear |
Sram SX 12s |
Rear Derailleur |
Sram SX 12s |
Shifter |
Sram SX 12s |
Chainwheel |
Sram SX DUB 32t |
Wheels |
Raxe 29 TL30 MT 400 BOOST |
Cassette |
Sram SX 11/50 12s |
Brakes |
Shimano BR-MT500 160/180 |
Tires |
Vittoria Barzo 29x2.25 |
Handlebar |
ONE Carbon fully integrated |
Stem |
ONE Carbon fully integrated |
Seatpost |
Raxe Alu light 31.6x400 |
Saddle |
SAN MARCO short fit wide open |
SIZE GUIDE
GO TO GUIDEWhat is your size?
Consult our SIZE GUIDE to get an indication of the frame size that best suits you. Remember that a biomechanical evaluation with your local authorized dealer is always recommended.
ONE MR FULL CARBON INTEGRATED
The new OИE MR full carbon fold integrated, is designed for the MTB Racing world.
Stem and hadlebar are integrated in a single structure that guarantees maximum cable integration, with an obvious advantage in terms of rigidity, comfort and a record-breaking aerodynamics.
Standard on all versions.
AVAILABLE SIZES: 780 x 70/80
REPARTO CORSE TECHNOLOGIES

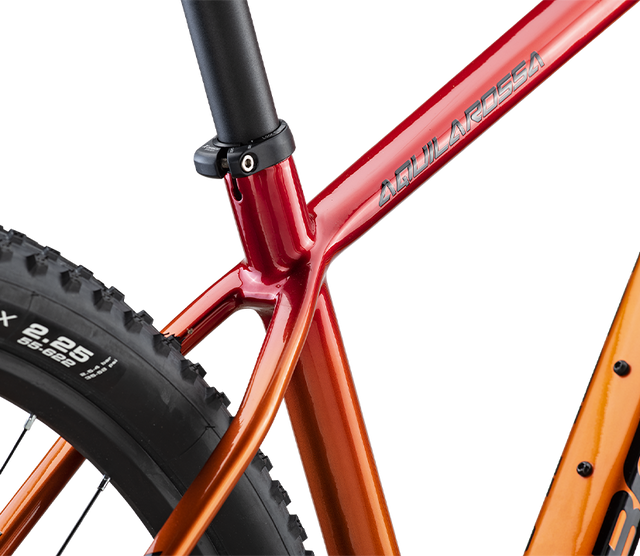

Designed to give its all on the racetracks, AQUILA ROSSA is produced with Monolith technology, thanks to which the 930 gram carbon frame takes structure and shape entirely from a single mold in the total absence of juncture points, creating a true monocoque. The homogeneity of the distribution of the carbon fibres benefits the weight, rigidity and distribution of vibrations throughout the structure, bringing performance to the highest levels. This allows you to smooth out the roughness of the trail and make the bike ultra-fast.
IDEAL FOR
Designed for the world of competition this hard tail is perfect for cross country and XCM. Ideal for medium-long distances, it allows you to better tackle mountain paths and routes with challenging gradients.
PERFECT FOR YOU IF
If you are a marathon cross-country rider or simply if you are looking for a light and agile mountain bike that makes no compromises.
