The beginning of a new era.

EMME 5 segna l’inizio di una nuova era. L’eredità di una grande storia che raccoglie 25 anni di esperienza nel mondo delle corse.


Ed è proprio EMME 5, l’ultima nata in casa Bottecchia, a celebrare quest’anno l’anniversario della prima vittoria di Ottavio Bottecchia al Tour de France nel 1924, anno in cui Ottavio fu il primo italiano a vincere il Tour e ad indossare la maglia gialla dalla prima all’ultima tappa.


Cento anni dopo, Bottecchia Cicli celebra questo inestimabile patrimonio etico e culturale con una Limited Edition di 100 pezzi: EMME 5 CENTENARIO.

EMME 5 CENTENARY

EMME 5 CENTENARY

€0,00
Select Color
CHASSIS

Carbon T1000 and T1100, full monocoque MONOLITH superlight, fully integrated cable routing, integrated seat post fixing, one hole thru axle, All In One Piece rear triangle, wheel passage up to 32mm.

MOVEMENT
 PRESSFIT 86mm.

STEERING
 Integrated 1” 1/2 above and 1” 1/2 below

FORK
 Super light monocoque carbon with 1”1/2 tapered steerer, integrated brake hose routing, aero stem profile, one hole thru axle. Raw weight 330g.

COLOR: F1 Centenary

WEIGHT
 Size M raw 795g

Setups

art. 74TD EMME5 DURA ACE Di2 DISK


OVERVIEW OF EQUIPMENT

GEOMETRIES

Sizes

44 - 47 - 51 - 54 - 57

0 / 0

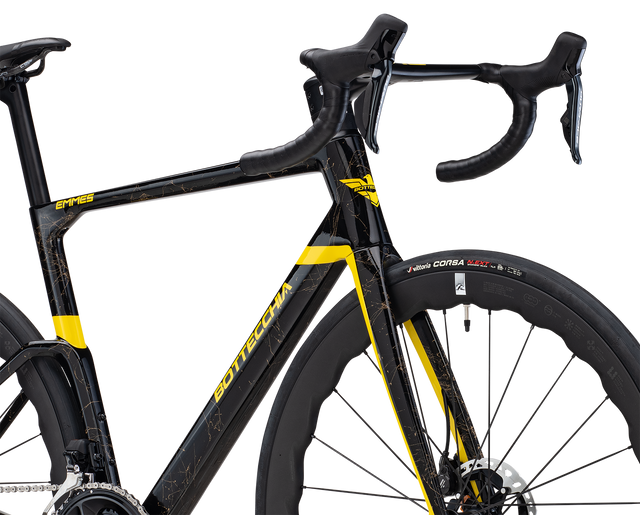

TOTAL INTEGRATION

The complete integration of the wiring into the 1 1/2” steering and fork ensures high aerodynamic efficiency. The fork is in fact perfectly integrated with the frame at an aerodynamic level to improve performance in terms of rideability.

STIFFER BUT LIGHTER

Horizontal tube with increased section in the area near the steering to increase torsional rigidity. The differentiated development of the oblique tube section instead improves aerodynamics and increases rigidity in the steering and BB area without weighing down on weight.

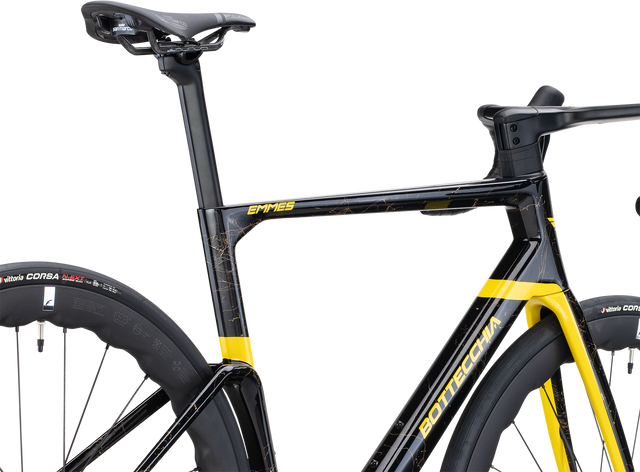

PROFESSIONAL SEAT POST

Dedicated carbon seatpost with drop section to improve aerodynamic performance. Setback reduced to 15mm for a more competitive position on the saddle. Seatpost clamp integrated inside the horizontal tube with fixing from the lower side, for greater cleanliness and better fixing.

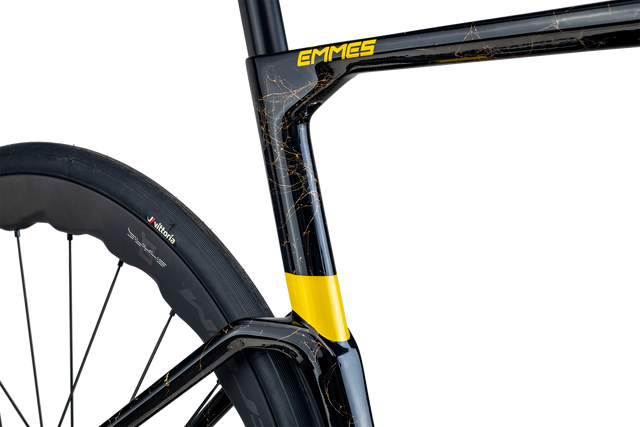

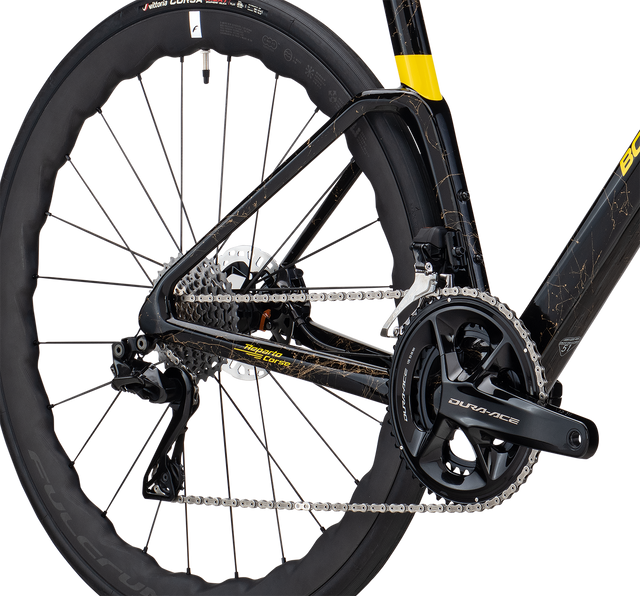

ALL IN ONE PIECE

New design for the rear triangle, designed in a single structure – all in one piece, which allows to eliminate the dispersion of power in the transmission of the cyclist's torque, and thanks to the responsive geometry, to maximize the reactivity and precision of the ride.

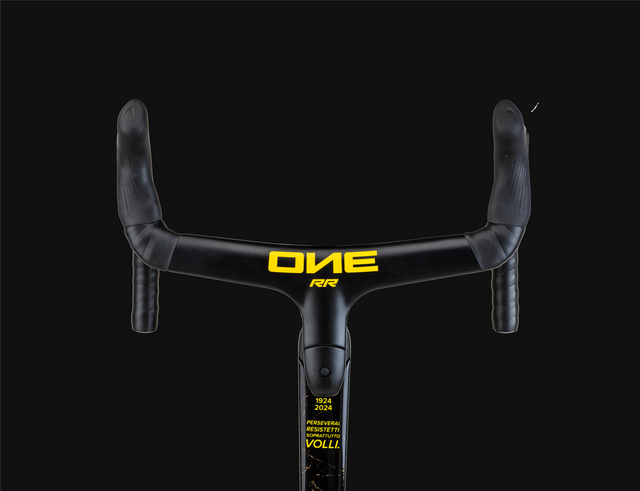

ONE RR FULL CARBON INTEGRATED

Piega ONE RR full carbon integrata con verniciatura custom Centenario.

Attacco e piega sono integrati in un’unica struttura che garantisce massima integrazione dei cavi, con un evidente vantaggio in termini di rigidità, comfort e una aerodinamicità da primato.

Peso 430 grammi.

MISURE DISPONIBILI: 420 x 90/100 - 440 x 90/100/110/120 - 460 x 110/120

100 YEARS

Questa Limited Edition celebra il centenario con la raffigurazione del Logo Centenario Bottecchia sul down tube, e con la famosa frase di Ottavio "Perseverai. Resistetti. Soprattutto volli" sul tubo orizzontale. Dettagli che raccontano una storia divenuta leggenda.

RACING TECHNOLOGIES DEPARTMENT

More aerodynamic and lighter, EMME 5 has an extraordinary weight-stiffness ratio, the best ever achieved before. 5% more aerodynamic efficiency and - 8% weight of the frameset compared to the previous EMME 4.
This improvement was achieved thanks to a particular study of the carbon layup applied to the Monolith production technology, which allows for the creation of a true monocoque by eliminating the joint points and obtaining a perfect distribution of the carbon fibres along the entire frame.
The complete integration of the wiring into the headset and fork also ensures high aerodynamic efficiency, also optimised by the differentiated development of the down tube section and the dedicated carbon seat post with drop section.
The rear triangle design is also brand new - ALL IN ONE PIECE, designed for perfect transmission of forces from the bottom bracket to the rear wheel axle. Wheel clearance increased up to 32 mm.

IDEAL FOR

EMME 5 is the quintessence of racing road bikes. Designed for professionals, it is perfect for long distances. Lightness and stiffness make it fast uphill, where it can make the difference. Reactive and fast, it is particularly effective in sprints, but also precise and stable on descents, where all its aerodynamics are enhanced.

PERFECT FOR YOU IF

Technically perfected in detail, EMME 5 is perfect for all road riders who do not compromise when it comes to performance.

THE LEGACY OF A GREAT HISTORY

EMME 5 inaugurates the fifth generation of EMME, a tradition born in 2010 with the first EMME 2, on which athletes of the caliber of Stefano Garzelli raced with the Acqua & Sapone team. This was followed by EMME695 in 2013, which boasted the lightest frame ever at 695 grams; EMME 3 GARA in 2016 and then EMME 4 in 2018, a multi-award winning Italian Champion bike with the Androni Sidermec team. Thanks to this twenty-year experience in the world of racing, EMME 5 perfectly represents the DNA of the Bottecchia Racing Department: competition, innovation, performance.

GUIDA ALLE TAGLIE

VAI ALLA GUIDA

Qual è la tua taglia?

Consulta la nostra GUIDA ALLE TAGLIE per avere un'indicazione sulla misura di telaio più adatta a te. Ricorda che è sempre consigliata una valutazione biomeccanica con il tuo rivenditore autorizzato di zona.

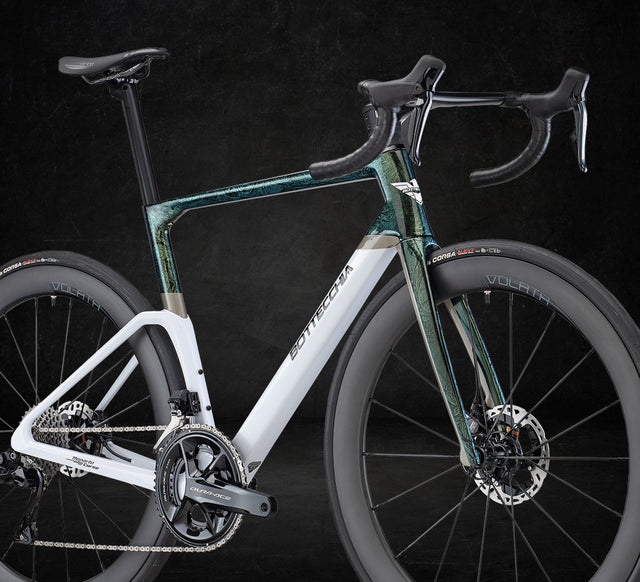

SCOPRI TUTTE LE VERSIONI

EMME5 è disponibile in sette diverse colorazioni e in diversi allestimenti. Scoprili tutti.
