Even more integrated, even more comfortable.

Even more integrated, even more comfortable. Gravel is about being prepared for anything, no matter the route. This is why Gravel Carbon meets the demands of freedom and comfort, with a lighter frame and fully integrated cables. The High Performance Geometry ensures greater comfort over long distances, and improved handling. The carbon cockpit with integrated cables is more ergonomic and aerodynamic, offering greater comfort thanks to the absorption of vertical ground vibrations.

GRAVEL CARBON us

Name: GRAVEL CARBON us
Brand: BOTTECCHIA
Availability: OutOfStock

€0,00

GRAVEL CARBON us

Sold Out

€0,00

Select Color

36 CREAM BROWN

Available for US market.

FRAME
Gravel Carbon monocoque UD disc, fully integrated cable routing, disc brakes, 12mm thru axle.

BB
PRESSFIT 86

HEAD TUBE
Integrated 1” 1/2 above and 1” 1/2 below

FORK
Carbon monocoque with 1”1/2 tapered steerer, weight 485 gr. 12mm thru axle.

WEIGHT
Size M raw 1165g

Setup

49BX Gravel Carbon GRX 610 24s diks

Sizes

49 - 52 - 54 - 56 - 59

SETUP OVERVIEW

GEOMETRIES

SIZE GUIDE

GO TO THE GUIDE

What is your size?

Consult our SIZE GUIDE to get an indication of the frame size that best suits you. Remember that a biomechanical evaluation with your local authorized dealer is always recommended.

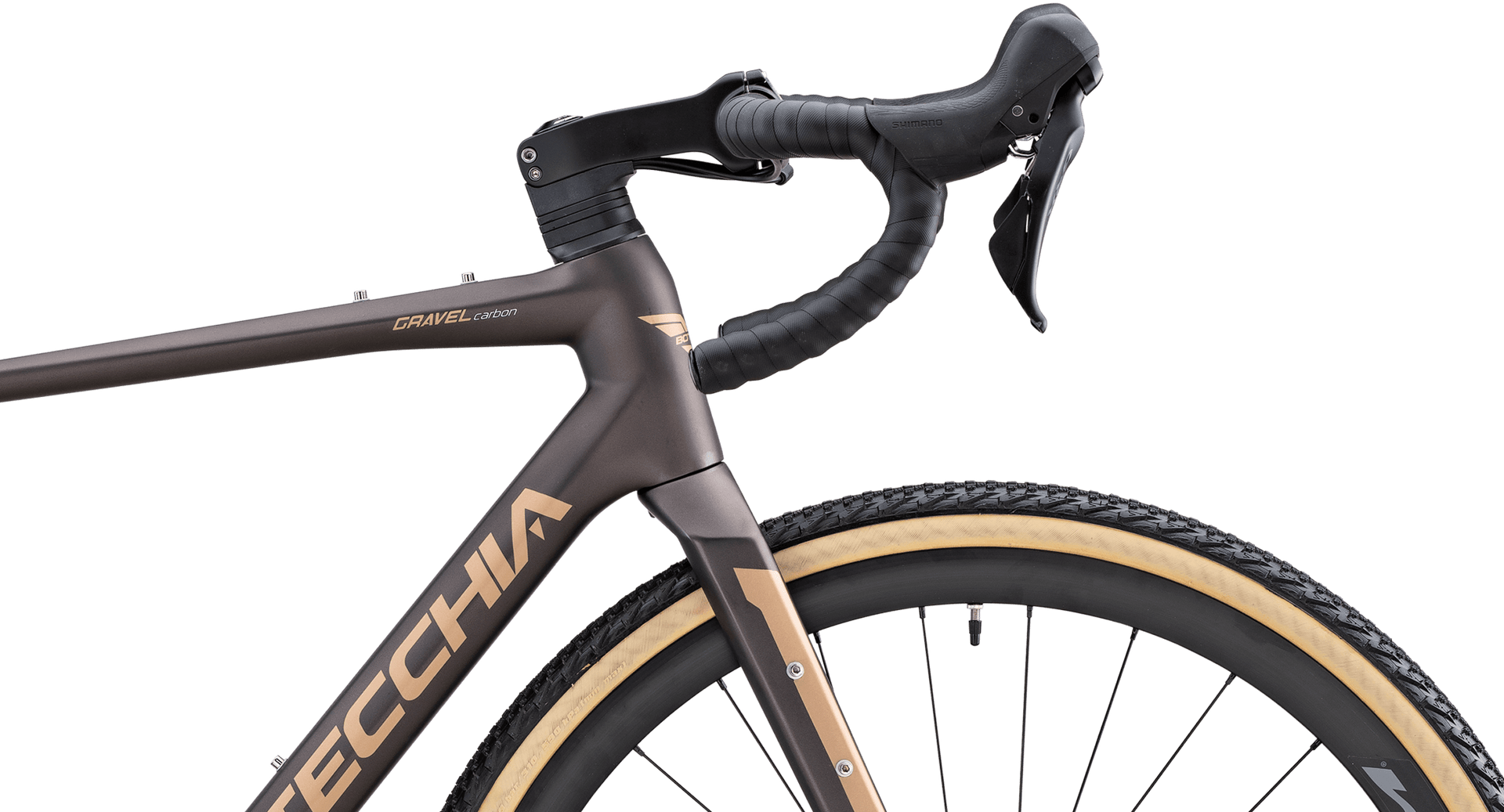

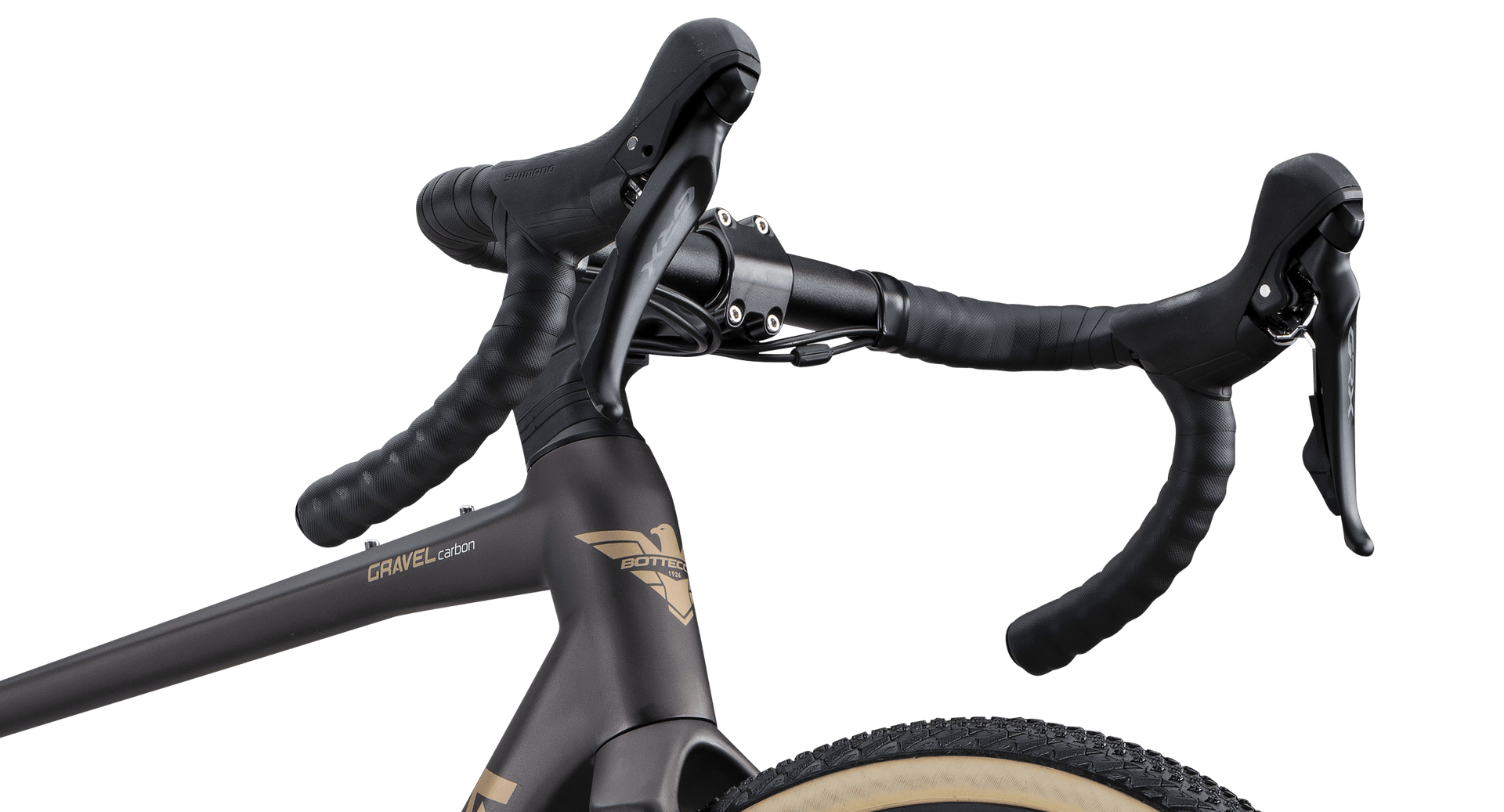

CARBON COCKPIT

GRAVEL CARBON frame boasts a more ergonomic and aerodynamic carbon cockpit with integrated cables, which offers greater comfort thanks to the absorption of vertical vibrations from the ground.

IRC TECHNOLOGY

GRAVEL CARBON responds to the needs of freedom and comfort, with a new lighter frame and fully integrated cables thanks to Internal Routing Cables technology. Perfect for any type of route and in all weather conditions.

HIGH PERFORMANCE GEOMETRY

The geometry is of the High Performance Geometry type, and ensures greater comfort over long distances and high maneuverability on all types of routes.

REPARTO CORSE TECHNOLOGIES

GRAVEL CARBON with light monocoque UD disc carbon frame, disc brakes, 12mm thru axle is the bike designed for the most demanding gravel routes. The powerful disc brakes, the oversized 700x40 gravel tires and the comfortable geometries offer further traction and stability making it reliable in every situation. Available in the 11-speed Sram Apex setup, or in the two Shimano GRX400 and GRX600 versions with 20 and 22 speeds specific for gravel biking.

IDEAL FOR

Gravel Carbon is designed for competitions, to tackle even the toughest courses such as those of the UCI World Series. Mixed routes, dirt roads, dirt roads or asphalt, it is designed for long and demanding outings, where it may also be necessary to equip yourself with bags and accessories.

PERFECT FOR YOU IF

If you are looking for a versatile, easy to handle and light bike, with extraordinary capabilities which will comfortably take you beyond the usual road route.

SCOPRI I RIVENDITORI

Concept & Design:
Meneghini & Associati - Talent Union

Group	Shimano GRX610 24s DISK	Change	Shimano GRX610 24s
Commands	Shimano GRX610 24s DISK	Garnish	Shimano GRX610 24s 30/46
Wheels	Fulcrum Racing 800 DISK	Box	Shimano GRX 11/36 12s
Brakes	Shimano RX400 DISK 160/160	Coverings	VRB Gravel 700x40 black for
Fold	Superzero Gravel Alu HB	Plant	Carbon ICR
Seatpost	Raxe Alu 27,2	Saddle	SAN MARCO short fit wide open
Pedals	NO

SIZE	TO	B1	C	AND	F	S	STACK	REACH
49	490	525	74°	70.5°	435	125	541	369
52	520	535	73.5°	71°	435	140	556	370
54	540	545	73°	72°	435	150	568	372
56	560	560	72.5°	72°	435	170	589	374
59	590	585	72.5°	72.5°	435	190	606	379
